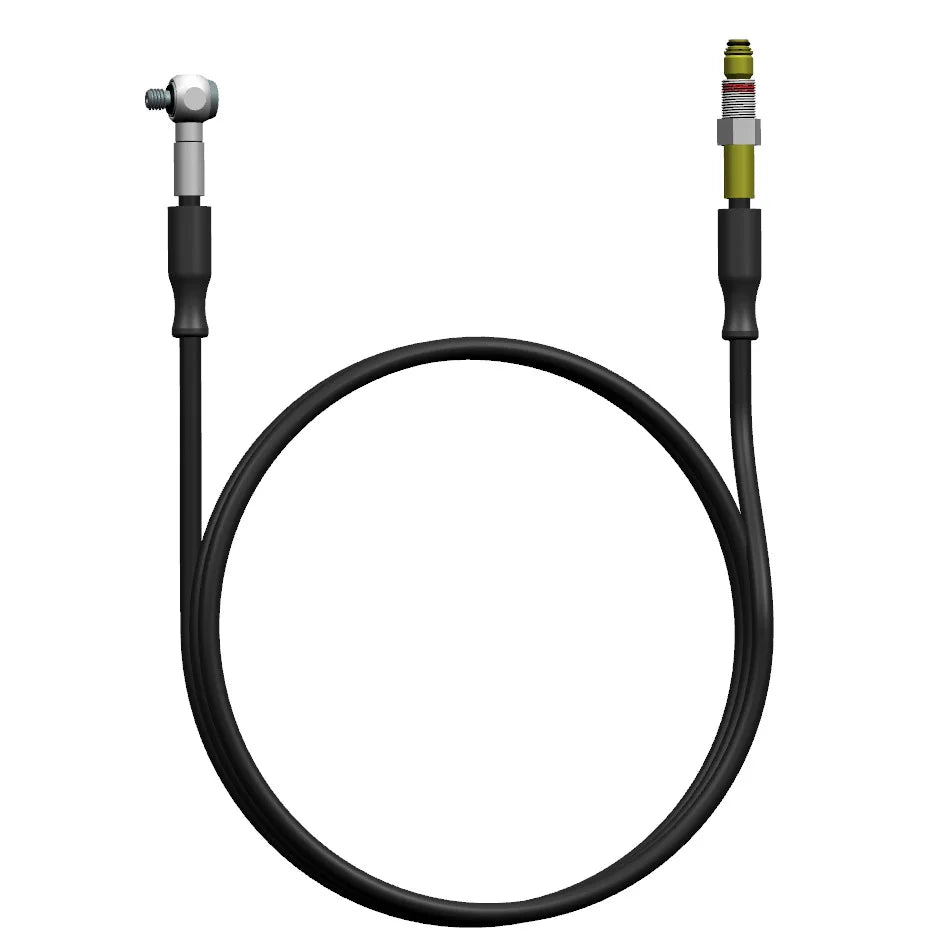

NFOX Brake Side M8 Copper M5 Aluminum Steel Rotary Joint Drive Skateboard Bicycle Hydraulic Oil Disc Brake Universal oil pipe

Product name: M8M5L16 bicycle hydraulic brake YouTube [side YouTube rotating head]

Brand: NFOX

Material: Copper + Stainless Steel + Fiber YouTube + Aluminum Alloy AL7075-T6

Purpose: Bicycle hydraulic brake repair, modification and replacement, etc

Weight: 40-90g

Pipe diameter: 5x2.2mm

Box gauge: 100 pieces/box

Remarks: Factory direct sales support customization, merchants and factories are welcome to discuss cooperation

Important: The position where the caliper installs the YouTube screw must be flat, not flat. Consult customer service with grooves to recommend suitable styles to you!

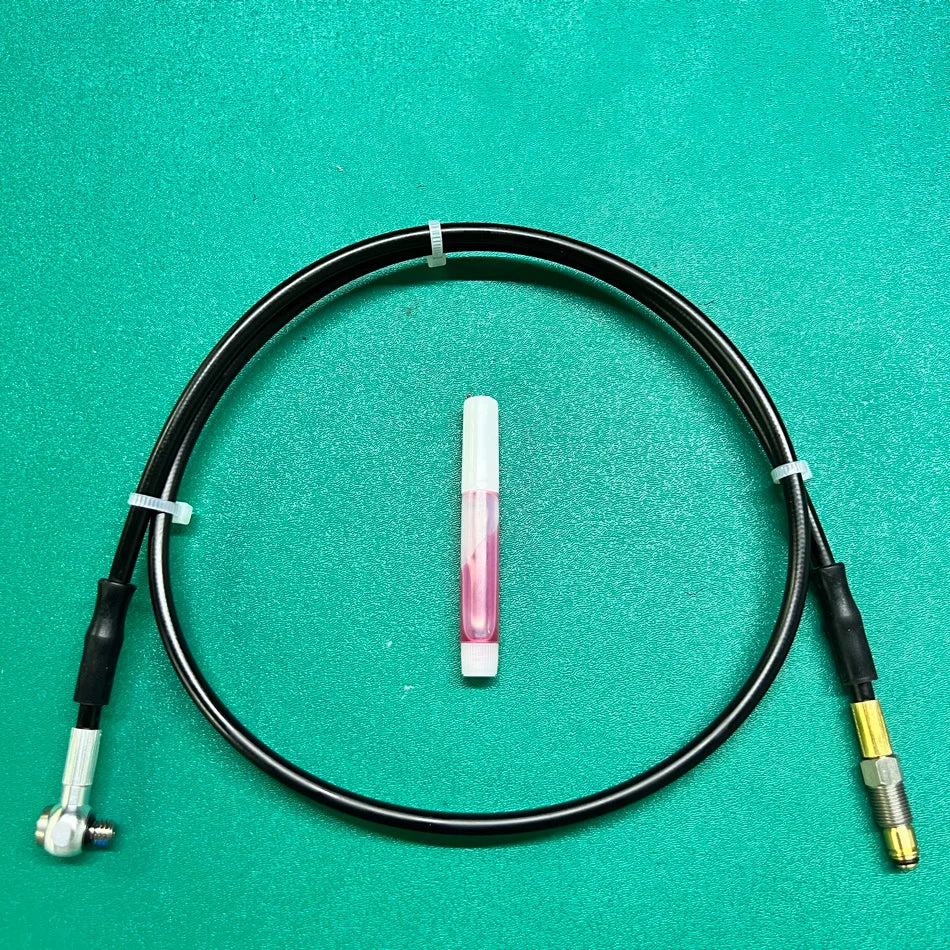

YouTube shipped and distributed 1 anaerobic glue, adding a fifth layer of sealing, NFOX exclusively designed and developed to repeatedly test the effect!

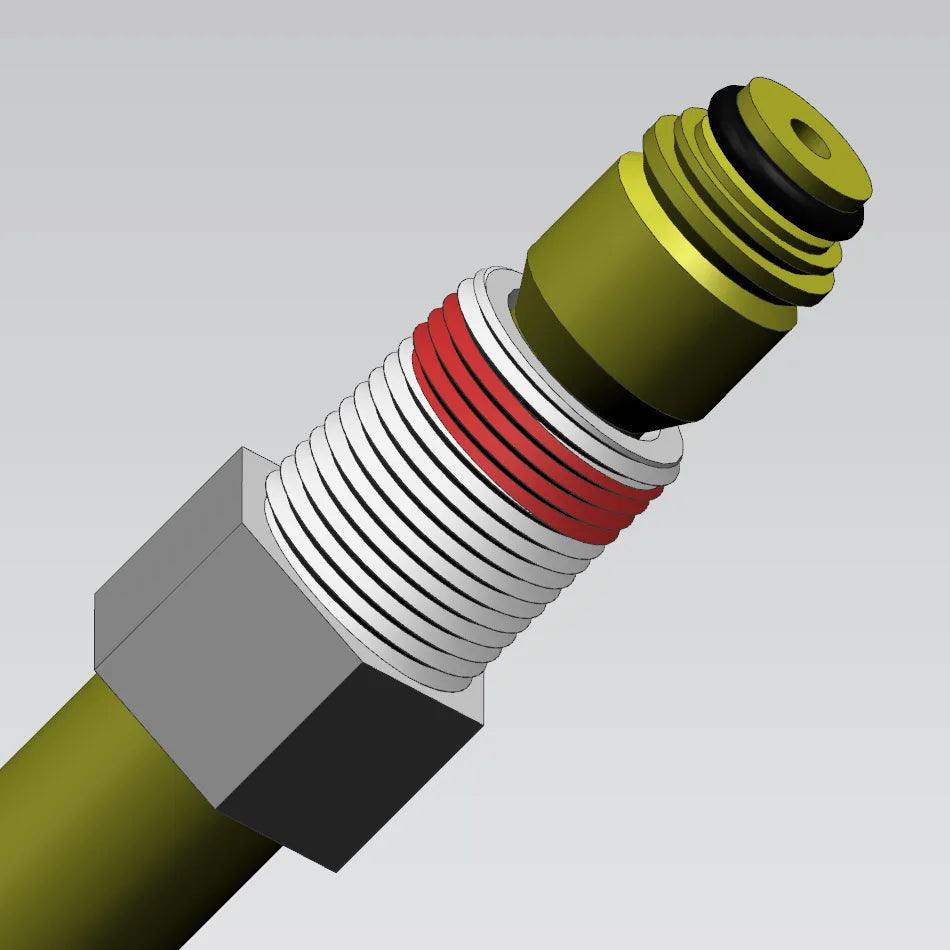

Five layers of no-dead-end seals, the first layer of rubber ring seals, the second three or four layers of copper hard core seals, and the fifth layer of anaerobic glue seals, as long as any two layers of seals can ensure that there will be no oil leakage!

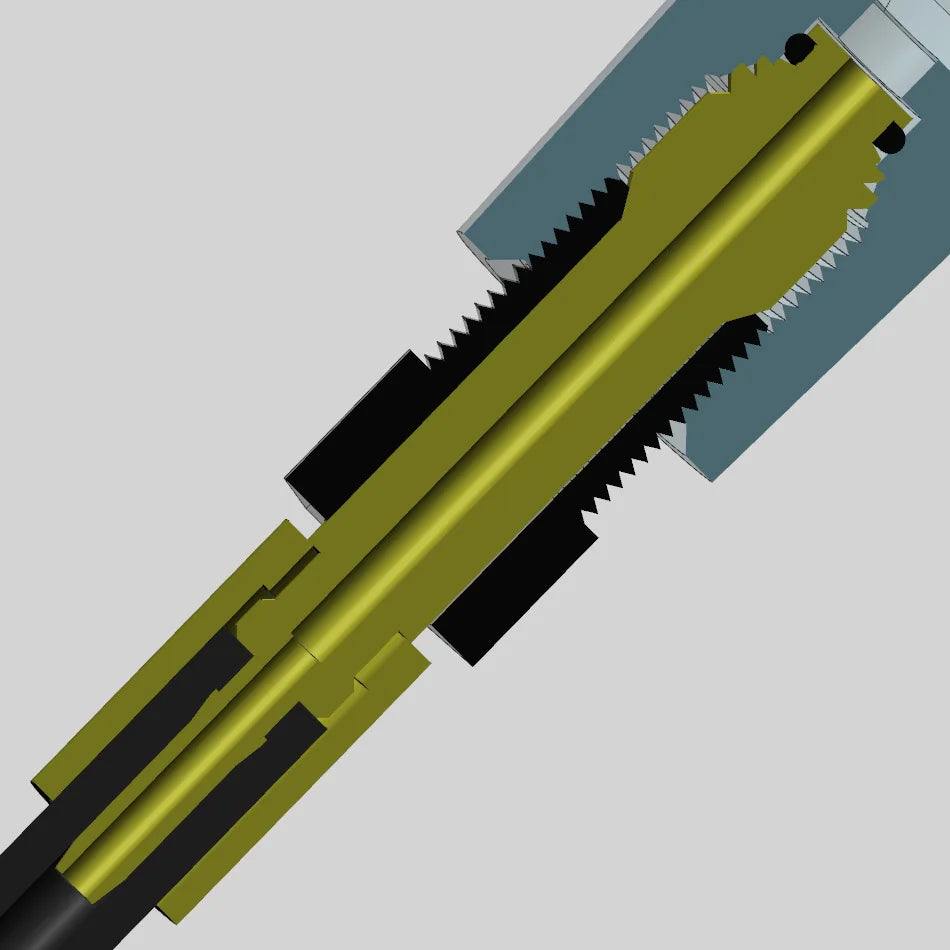

This is a YouTube and 3D diagram of the brake handle assembly. Not only is the product well-done, but it also allows you to know the principle and internal structure, allowing you to use it with greater peace of mind!

Attention please!

It doesn't take a lot of effort to install the YouTube screw, and the torque is about 12N.m.Copper is relatively soft as long as you feel pressure, too much force will cause the brake main body to slide and scrap!!!

This is the joint-related parameters, please take the production test. The general is relative rather than absolute. Please check the above parameters before purchasing. If you want to gamble, the consequences can only be borne by you!

The used products affect the secondary sales, and our company does not accept returns and exchanges!

Please refer to the relevant parameters of the side YouTube rotating head. "*" is the key size, and these two sizes must be the same before they can be adapted!

NFOX original design, ① The screw marking the position has added a rubber ring protective groove, which will not leak oil because the rubber ring is vigorously crushed during installation and cannot be used.

This is the quality of detail!

The actual shooting side YouTube connector, the connector body is made of aluminum alloy AL7075-T6 numerical control, the screw is made of stainless steel and has a drop resistance function

This is the rendering of the caliper after installation, for reference only.

This is the brake after replacing YouTube, the effect lever, very awesome!
