NFOX PRO Professional Edition Hydraulic Brake Oil Disc Oil Brake Exhaust Repair Tool Set Electric Skateboard Bicycle

NFOX Honor's new PRO version is suitable for bike shops, repair masters, and cycling enthusiasts.

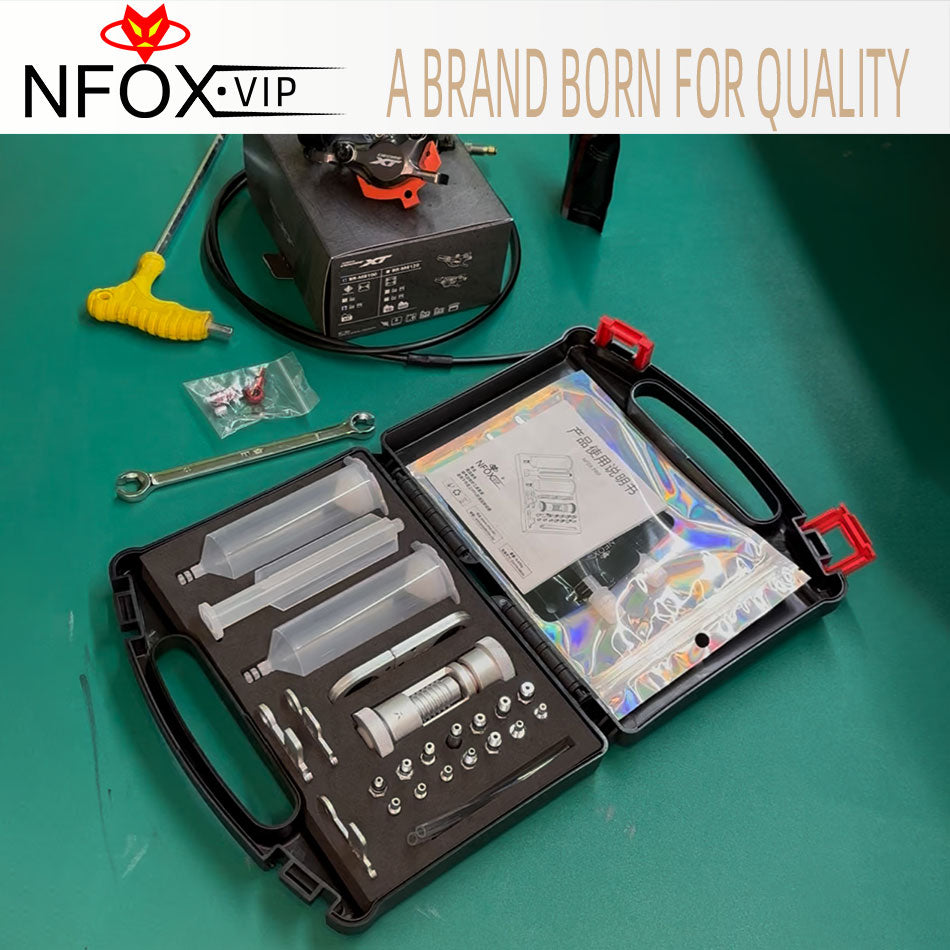

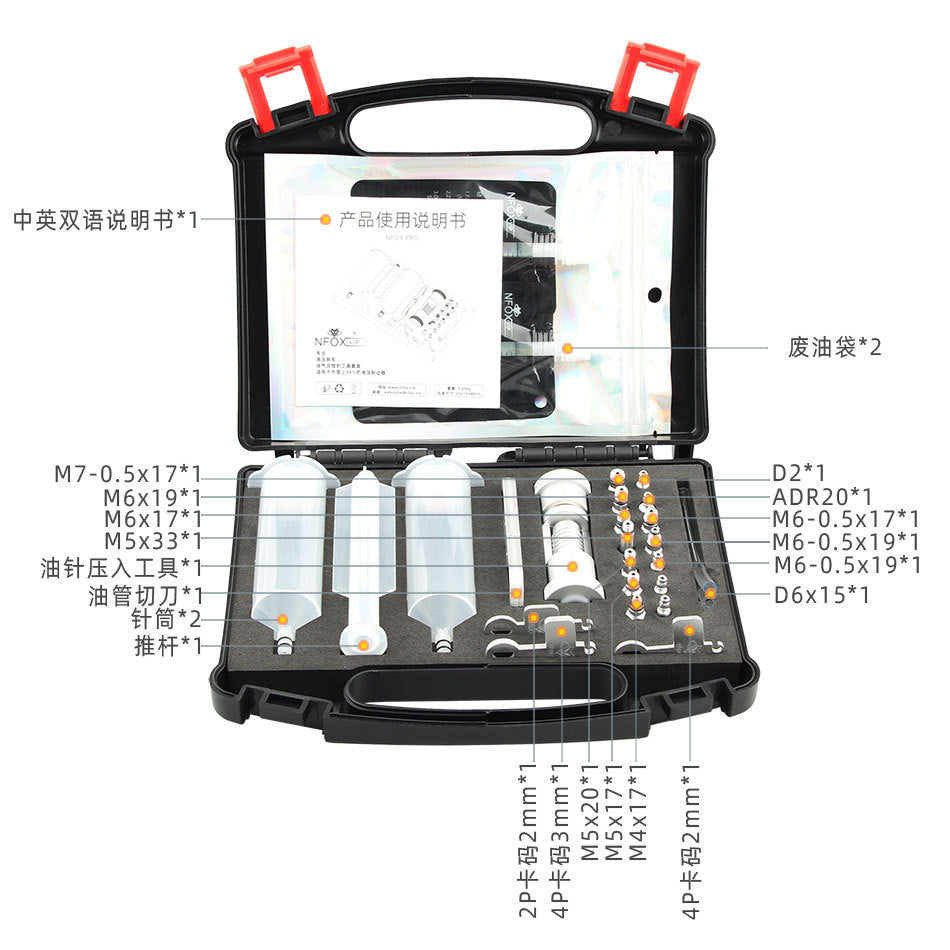

The configuration is as shown above, which is very rich, covering the full function configuration of oil pipe cutting, oil needle pressing, oil filling and exhaust, etc.

The connector configuration is very complete and compatible with 99% of the brake systems on the market. If you are in that 1%, we also accept customized orders with a minimum order of 2,000 pieces at the source factory price!

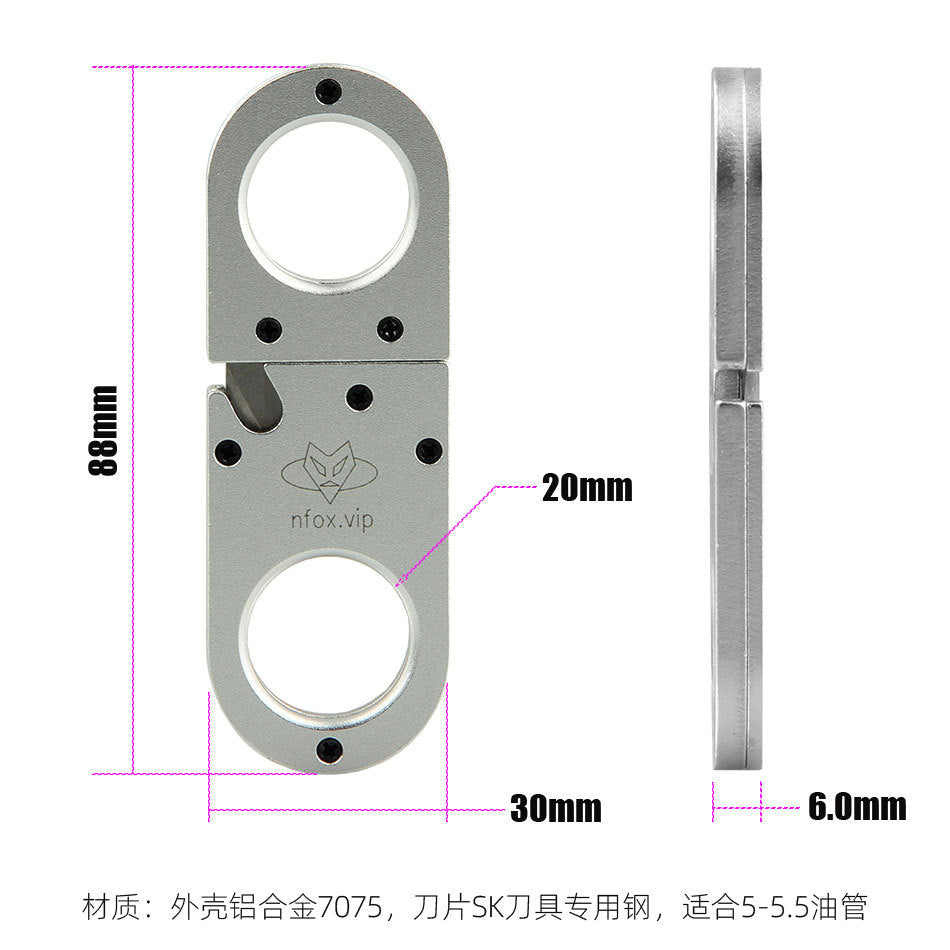

The oil pipe cutter is made of aluminum alloy, suitable for: 5-5.5 oil pipe, 6mm hose

This is a simple instruction on how to use the cutter. If you need more detailed information, please contact customer service!

The oil pipe needle pressing tool is made of aluminum alloy, suitable for: 5-5.5 oil pipes, 6mm hoses, compatible with the pressing of five-wire bodies and other special-shaped connectors. It looks small but has powerful functions!

The needle pressing tool is made of AL-7075-T6 aluminum alloy and CNC machined with a sandblasted anodized finish. The needle pressing tool is compatible with 99% of the oil pipes and oil needle models on the market. This is a double-patented product from Zhixin Sports Products! Pressing the oil needle into the oil pipe is very simple and smooth. The minimalist design is unique and first-of-its-kind.

Reasonable design, the head of the pressure needle screw has a plastic pad to protect the five-wire body, so the appearance will not be damaged!

This is what the tool manual contains.

Patented design, special syringe for hydraulic brake oil filling and exhaust, exclusive mold for Zhixin Sports, made of imported PP high-transparency raw materials and durable!

Remove the oil seal from the brake handle. ⑤ Find the appropriate connector in the tool. ⑥ Insert it into the syringe. ⑦. Remove the caliper oil seal. ⑧ Find the appropriate connector. ⑨ Insert it into the syringe. ⑩ Use the push rod. 11. Push the brake fluid into the brake!

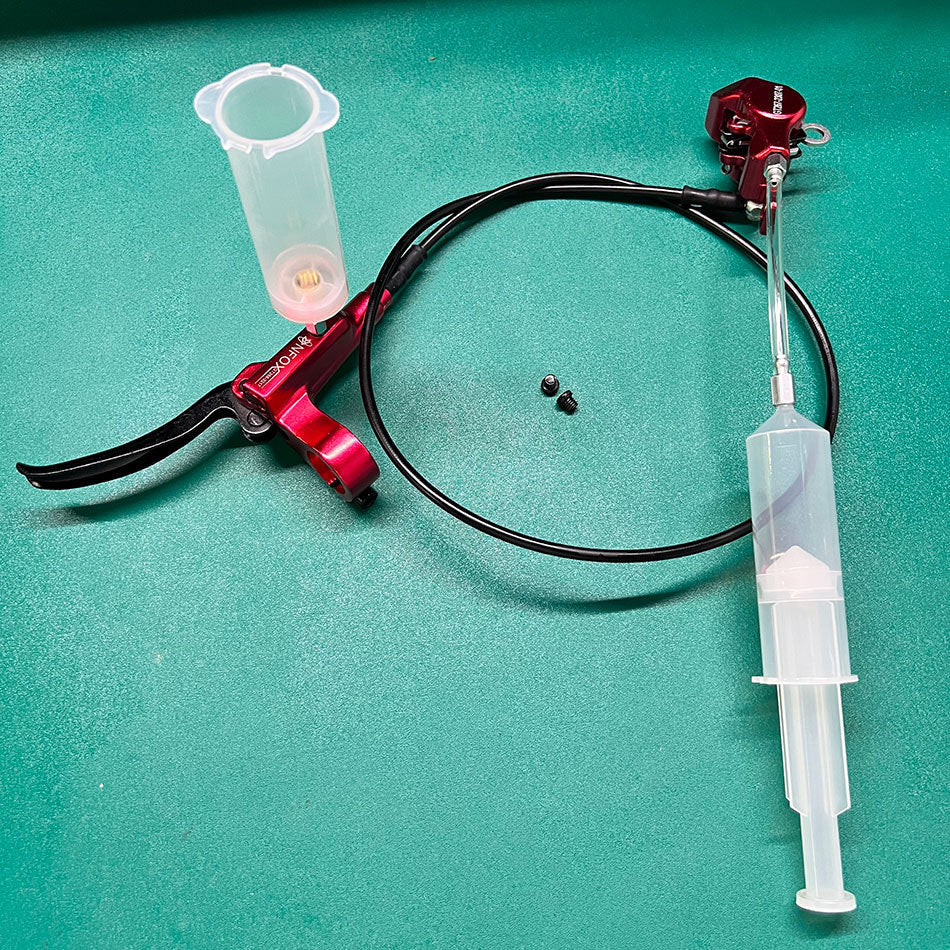

The picture above demonstrates how to use this replacement tool. All the accessories are connected. You need to add brake fluid when using it!

Extension: When the oiler cannot be directly connected, we can use connector 12 to connect the hose 13 and then insert the conversion head into the connector! 15 Note that the conversion joint needs to be rotated to disassemble (because the inner circle has an anti-slip design, hard pulling will damage the rubber ring)

When in use, fill the syringe with brake fluid and push the brake fluid into the caliper as shown in the picture. The brake fluid will flow along the caliper and oil pipe to the brake handle!

The syringe can be directly connected to the oil bag to extract the brake fluid inside the oil bag. We really put a lot of thought into it for your convenience!

Connect a waste oil bag to the brake handle. After oil filling and exhausting, remove the oil bag, cover it with a sealing cap and dispose of it properly, or use it as a spare for low-requirement lubrication!

Disc brake pad card code is made of aluminum alloy, use: used for disc brake transportation oil change to prevent piston movement!

Remove the brake pad pin ① Select the appropriate card code and install it into the caliper to prevent damage to the piston (some brake pad pins are relatively small and the diameter is less than 2.5mm, so there is no need to remove the pin and directly hang the card code in.

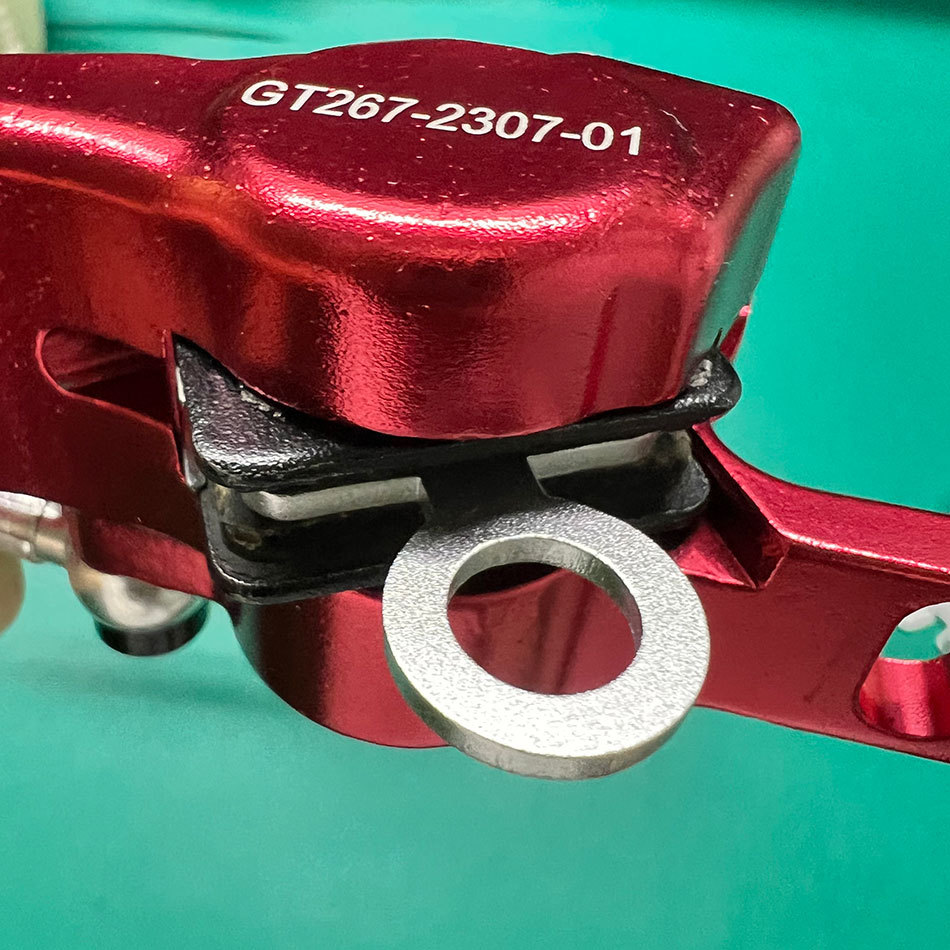

This is a 2-piston hydraulic brake installation shot, please refer to

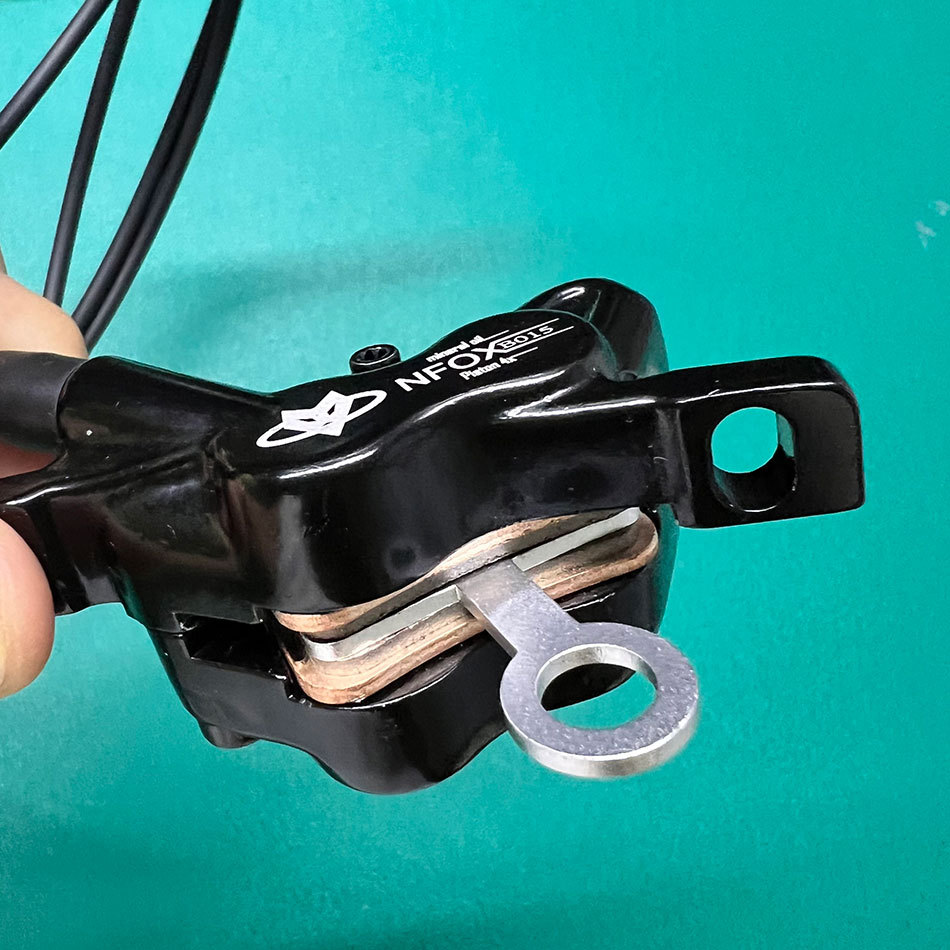

This is the actual installation picture of the 4-piston caliper. This caliper is suitable for a 2mm thick brake disc, so the card code also uses 2mm.

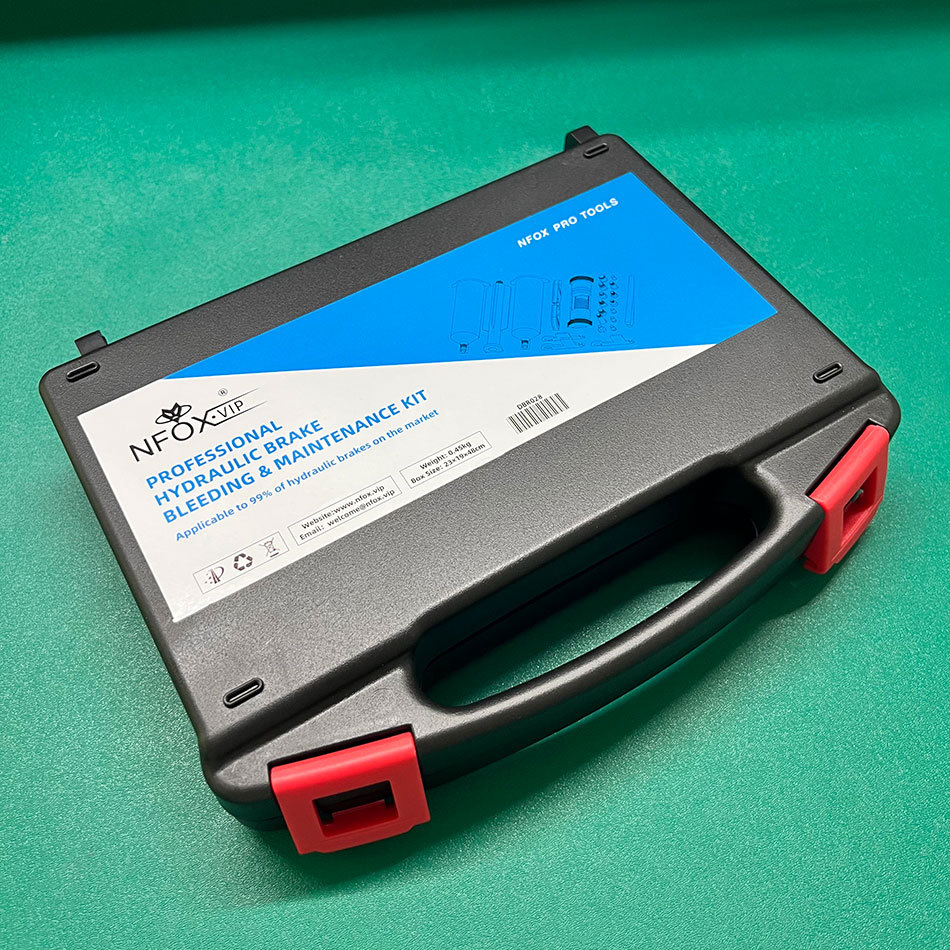

This is a real shot of the toolbox style

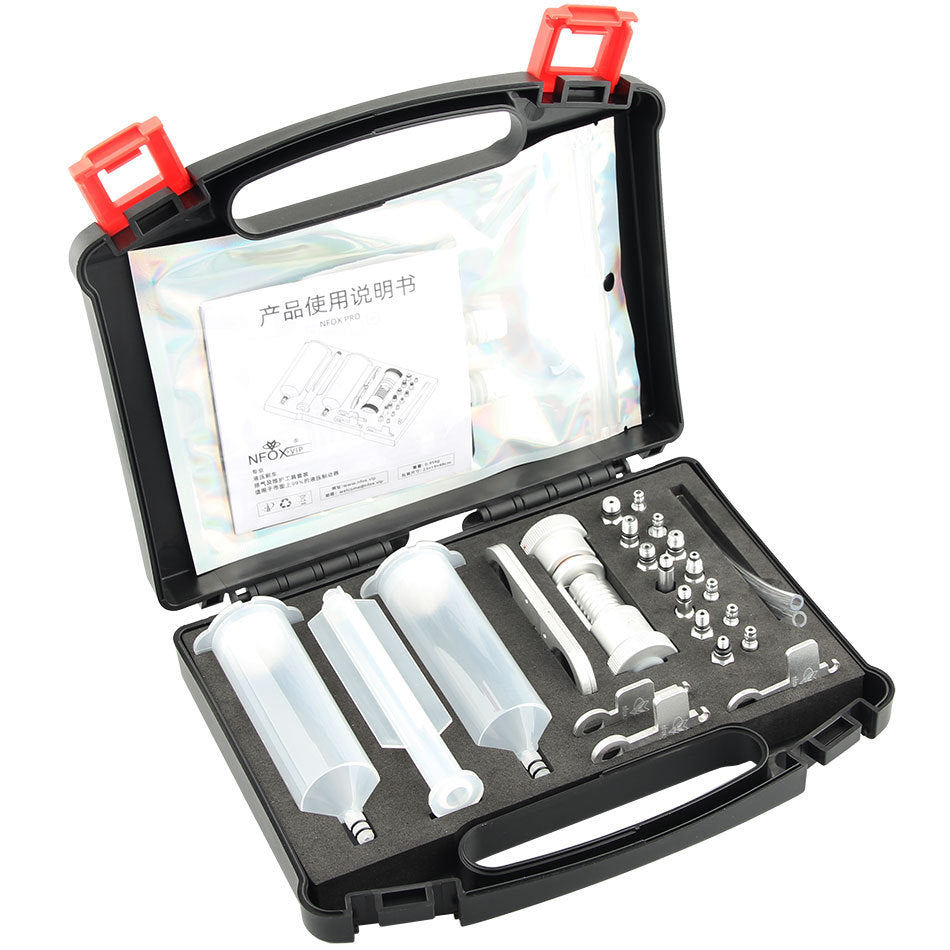

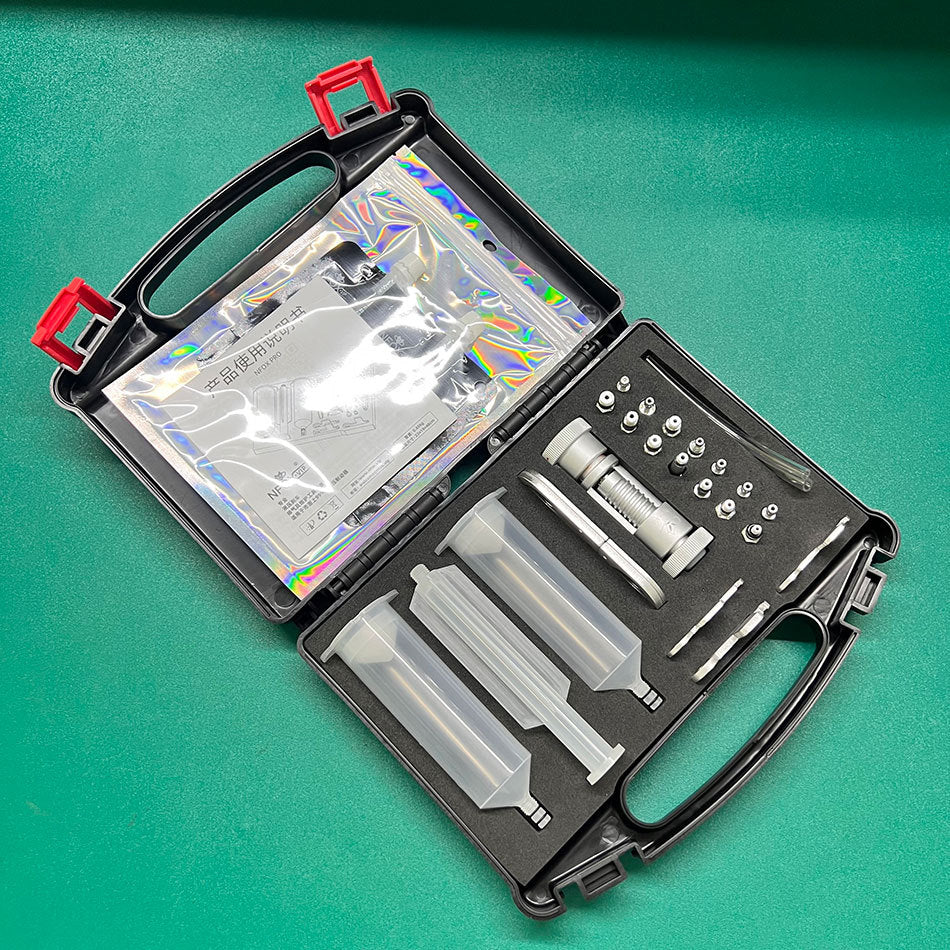

This is a real shot of the toolbox open

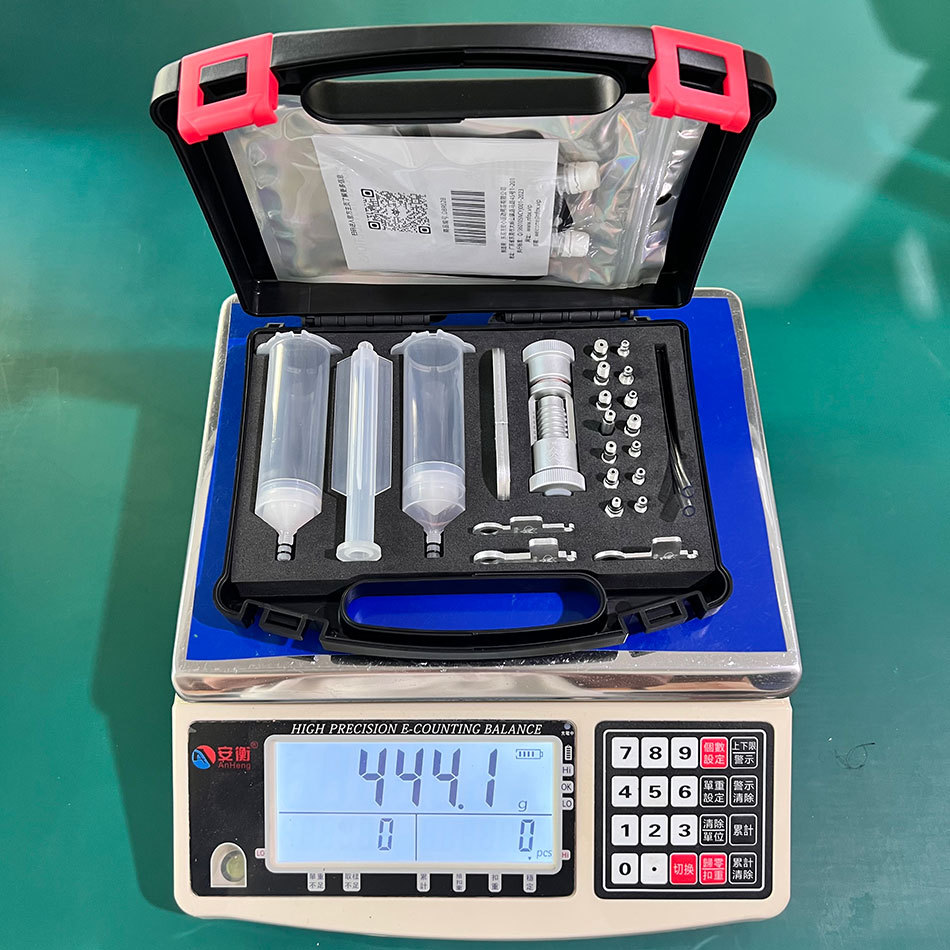

This is the actual weighing shot
